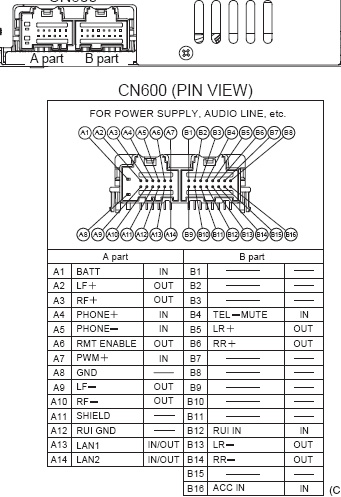

CHEVROLET Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install

CHEVROLET 96647739

Chevrolet 2004

contact A connector connector B
1 + 12V permanently CALL (*)
2 Speaker LF + Subwoofer control
3 Speaker RF + subwoofer audio +
4 phone + Mute your phone
5 telephone - Speaker LR +
6 rem enable Speaker RR +
7 PWM+ -
8 Power weight speed signal (*)
9 LF speaker Subwoofer authorization (*)
10 RF-speaker -
11 - Or screen (*) masa aubwoofer audio (*)
12 pilot time pilot
13 - Or GM LAN1 (*) LR speaker
14 PWM- lub GM LAN2 (*) RR speaker
15 -
16 + 12V key

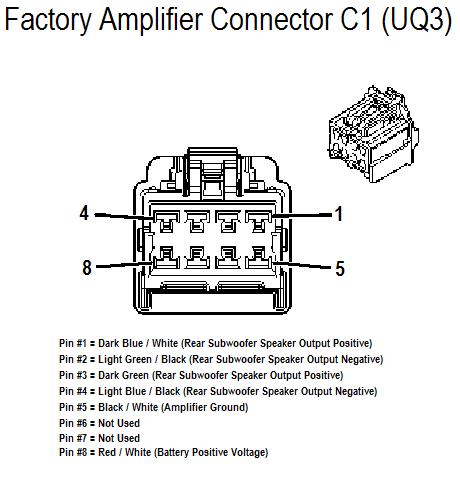

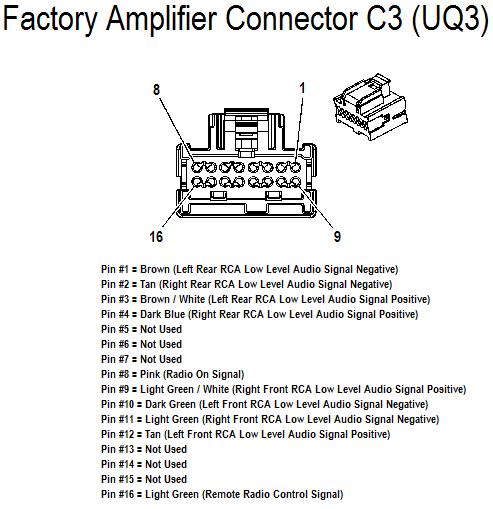

Chevrolet 2008 HHR amplifer connector C1 wiring

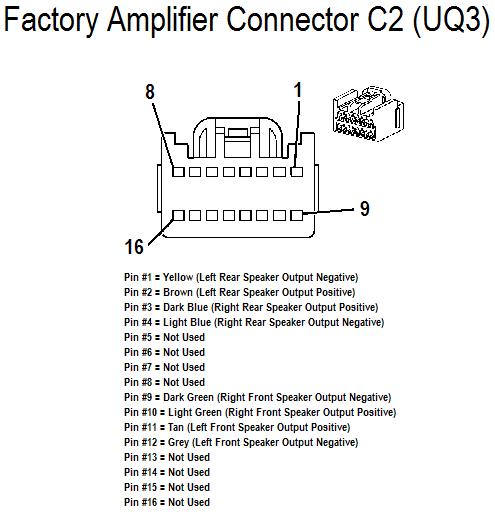

Chevrolet 2008 HHR amplifer connector C2 wiring

Chevrolet 2008 HHR amplifer connector C1 wiring

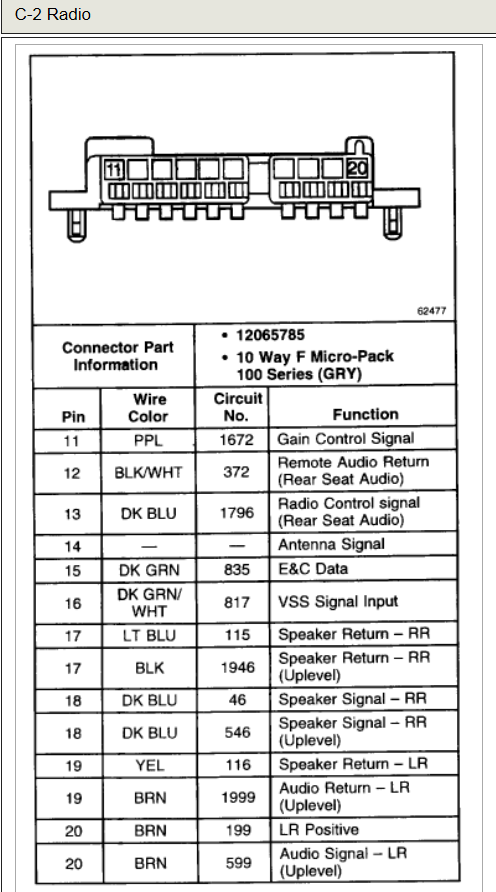

Chevrolet Tahoe LS 2000 stereo wiring connector

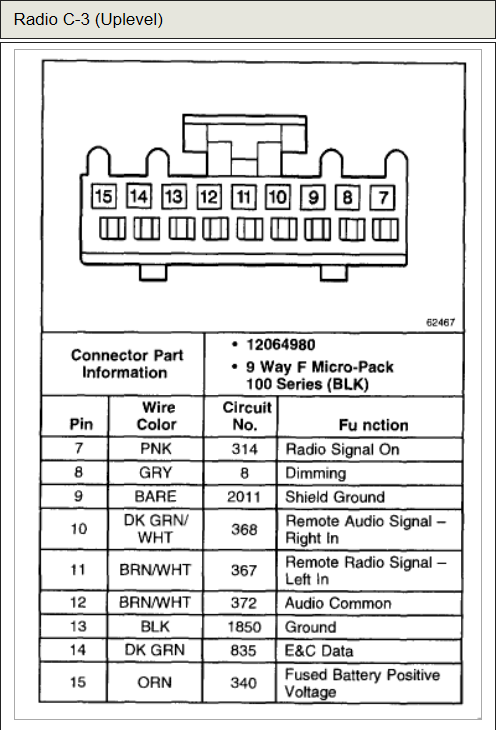

Chevrolet Tahoe LS 2000 stereo wiring connector

Chevrolet Tahoe LS 2000 stereo wiring connector

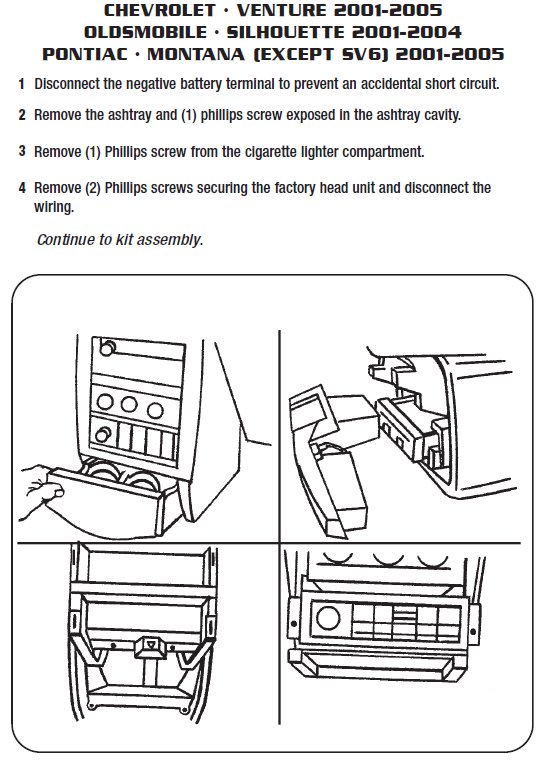

Chevrolet Venture 2001-2005 stereo wiring connector

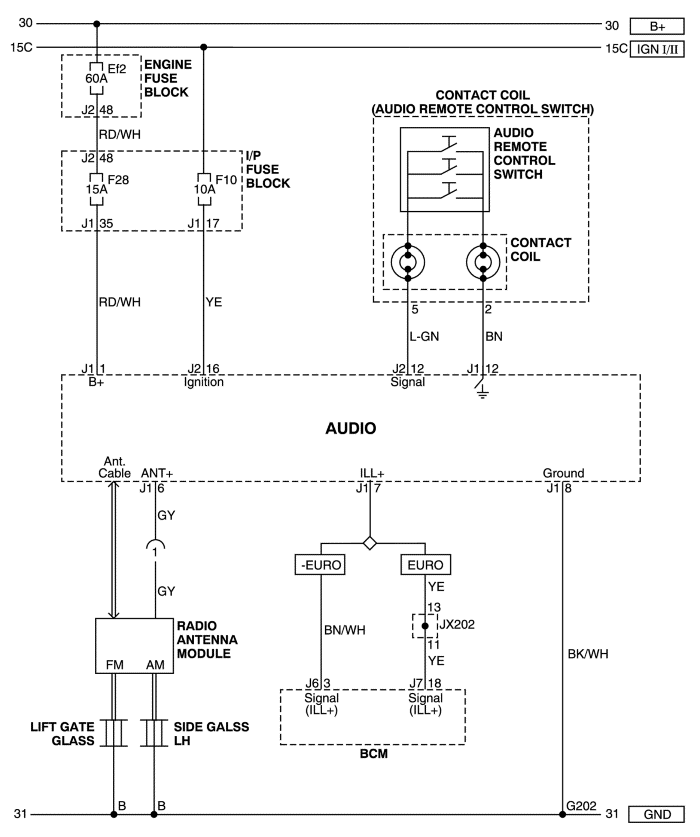

Chevrolet Captiva 2008 stereo wiring

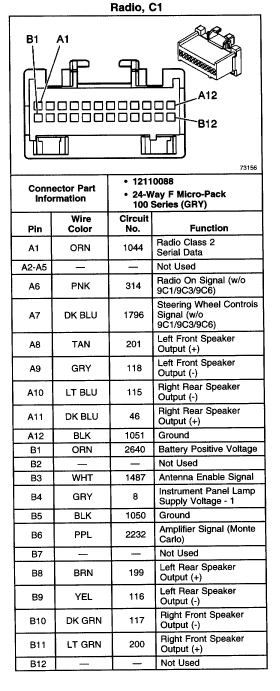

Chevrolet Impala 2002 stereo wiring connector

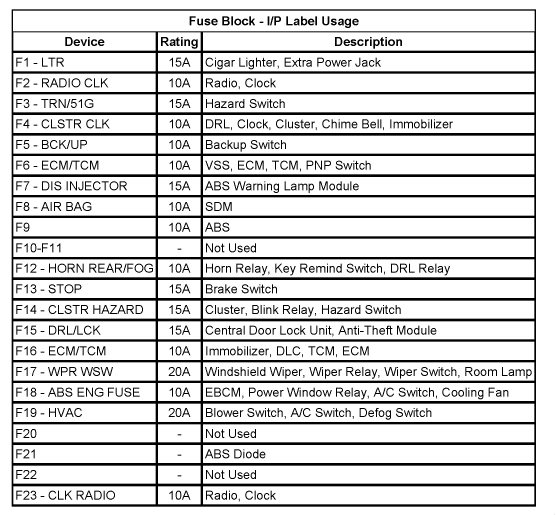

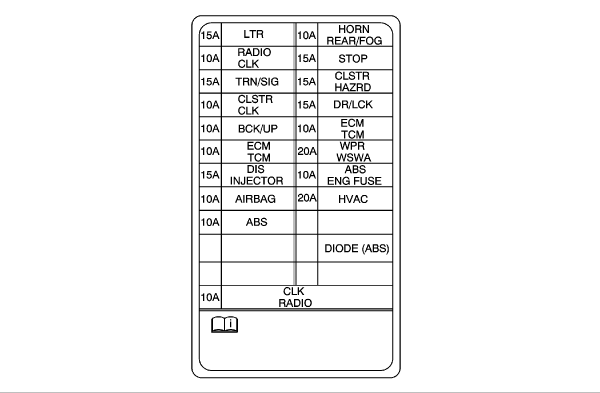

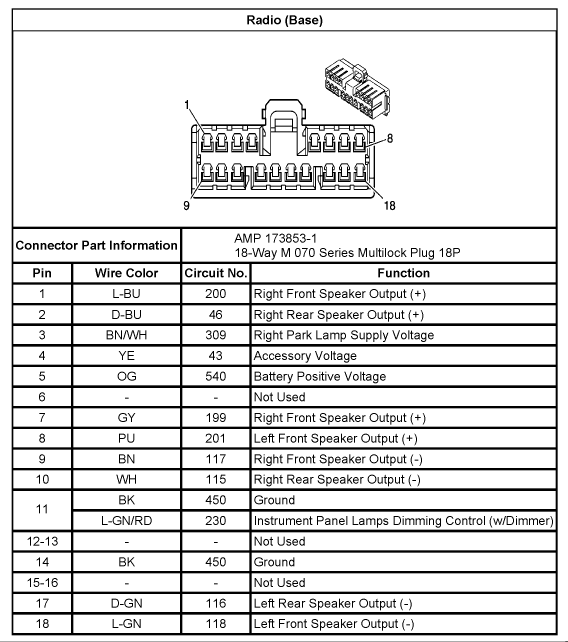

Cevrolet Aveo 2007 radio wiring connector 5

Cevrolet Aveo 2007 radio wiring connector 4

Cevrolet Aveo 2007 radio wiring connector 3

Cevrolet Aveo 2007 radio wiring connector 2

Cevrolet Aveo 2007 radio wiring connector

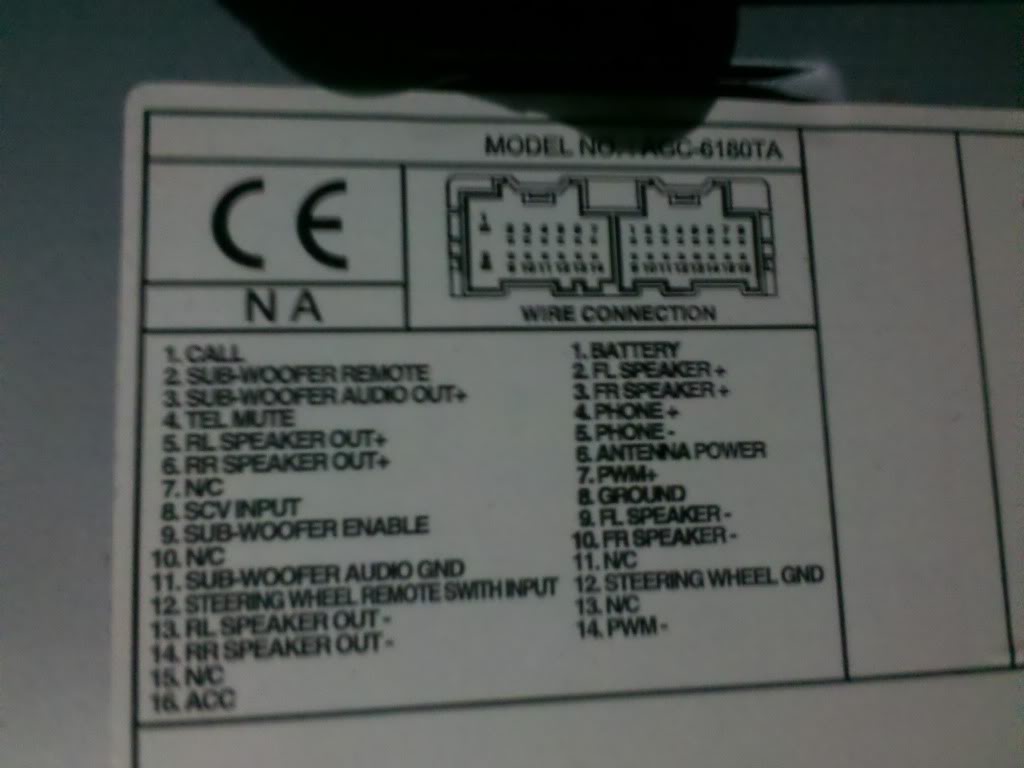

Cevrolet Aveo 2007 stereo wiring connector

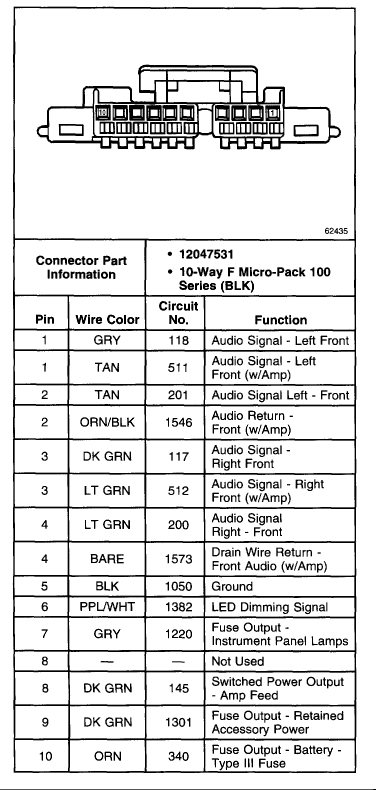

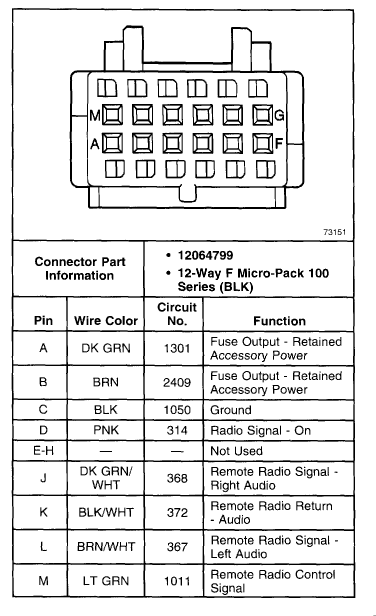

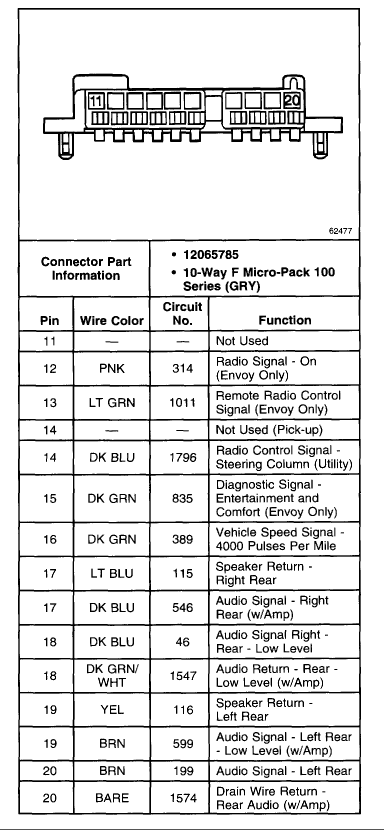

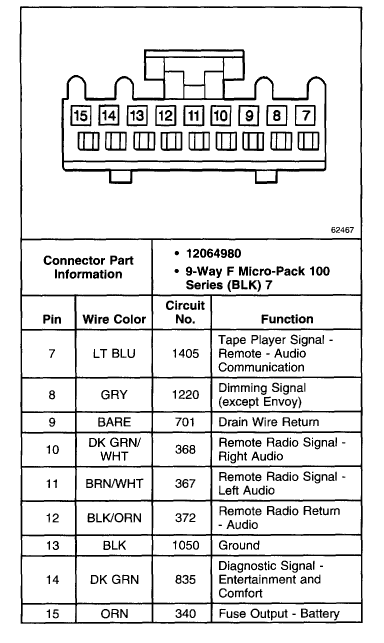

Chevrolet S-10 1998 stereo wiring connector 4

Chevrolet S-10 1998 stereo wiring connector 3

Chevrolet S-10 1998 stereo wiring connector 2

Chevrolet S-10 1998 stereo wiring connector

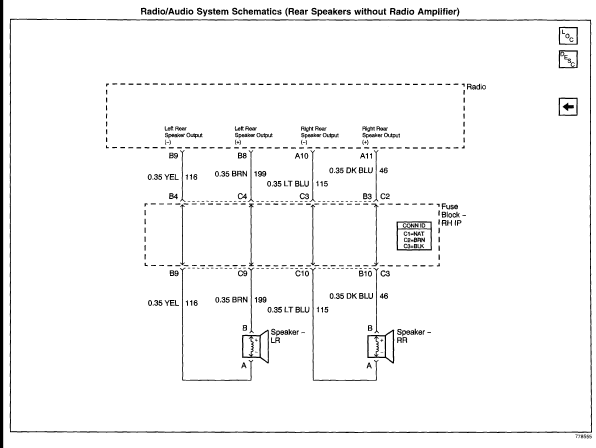

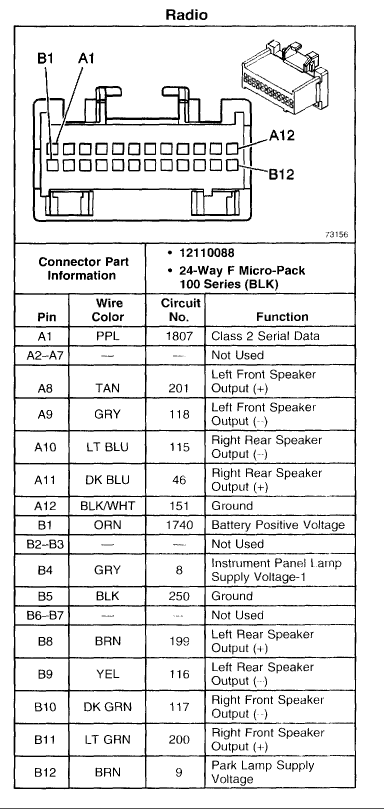

Chevrolet Malibu 2002 stereo wiring connector 2

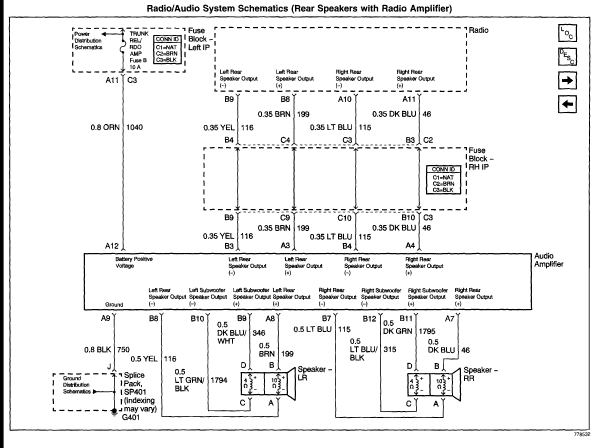

Chevrolet Malibu 2002 stereo wiring connector

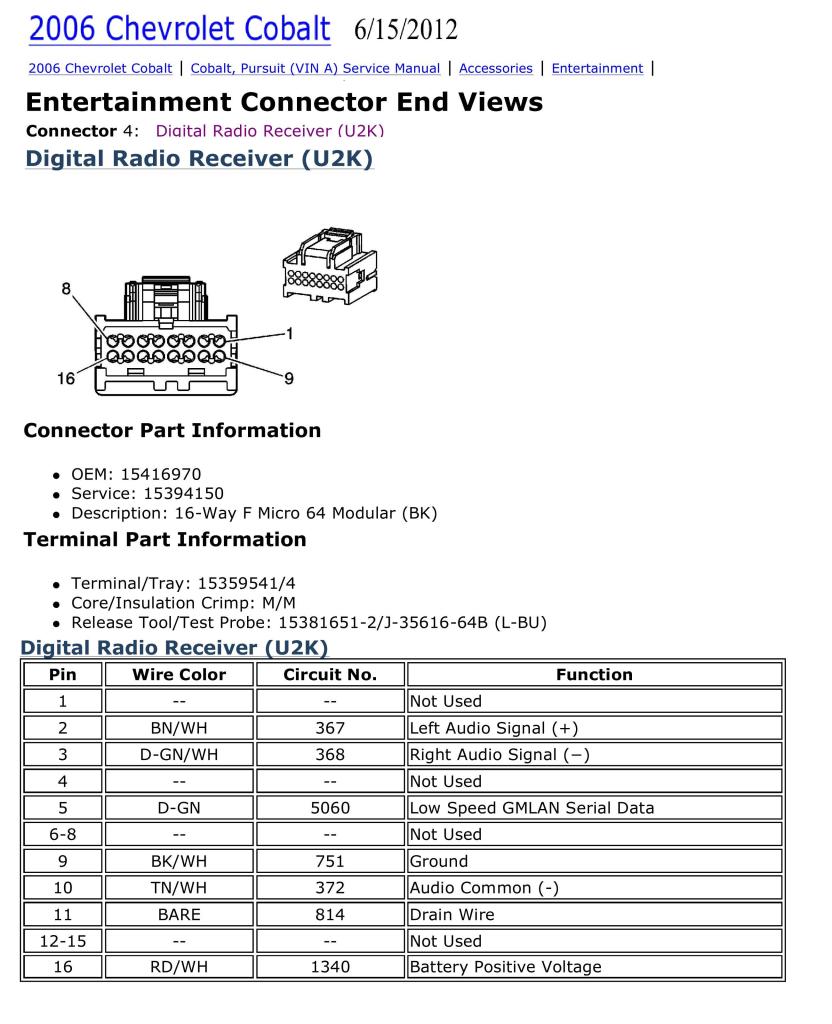

Chevrolet Cobalt 2006 U2K stereo wiring connector

Chevrolet Cobalt 2007

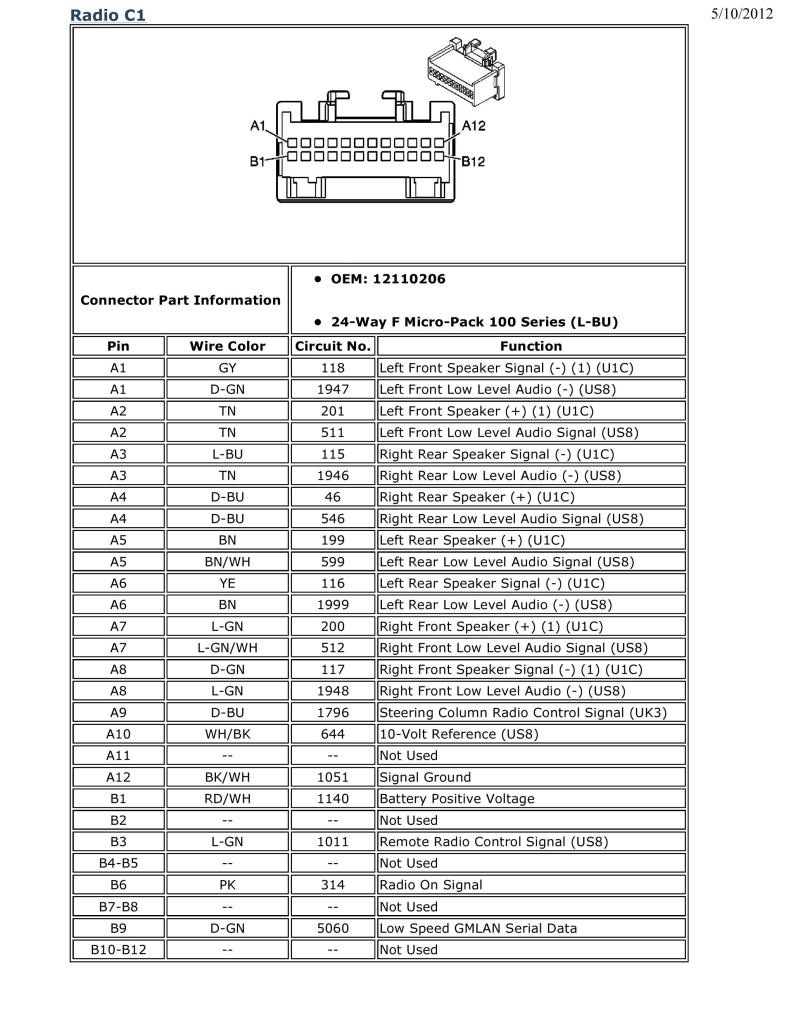

Chevrolet Cobalt 2005 radio C1 wiring connector

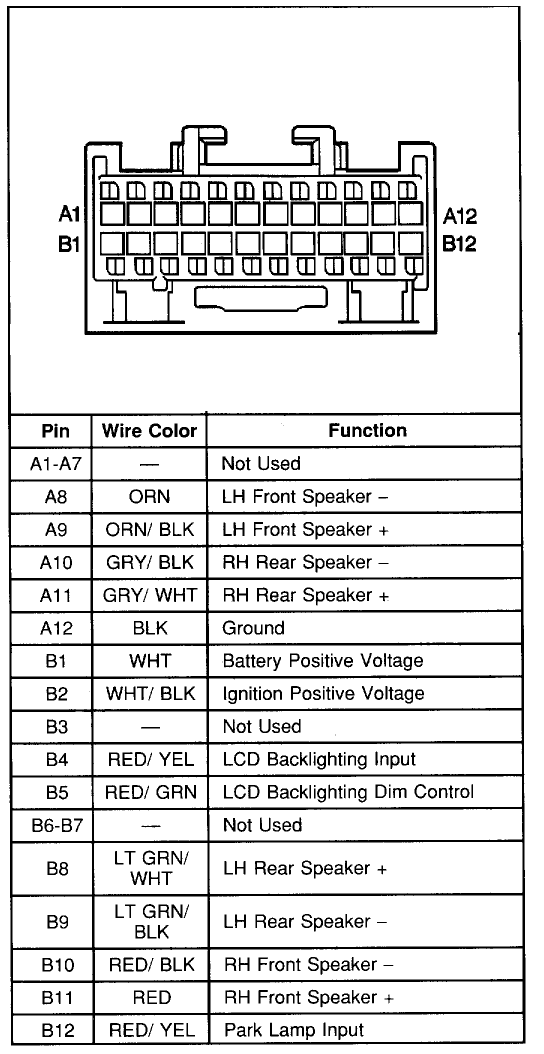

Chevrolet Metro 2001

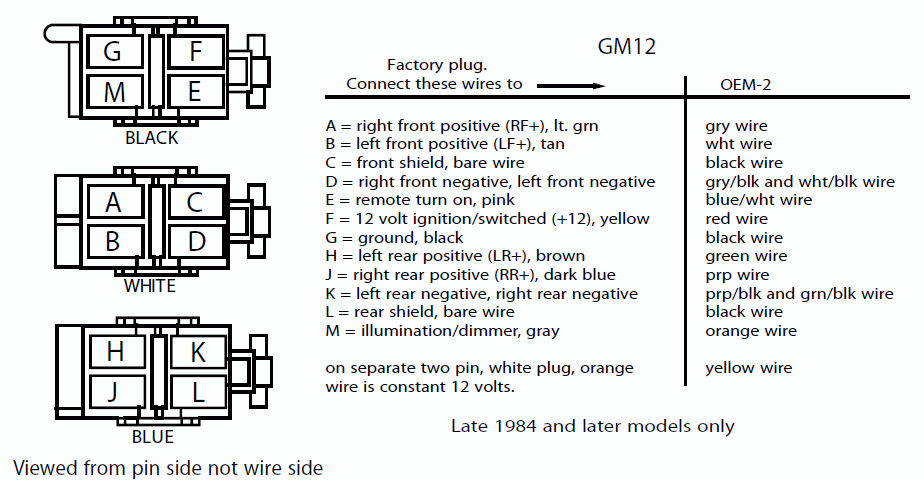

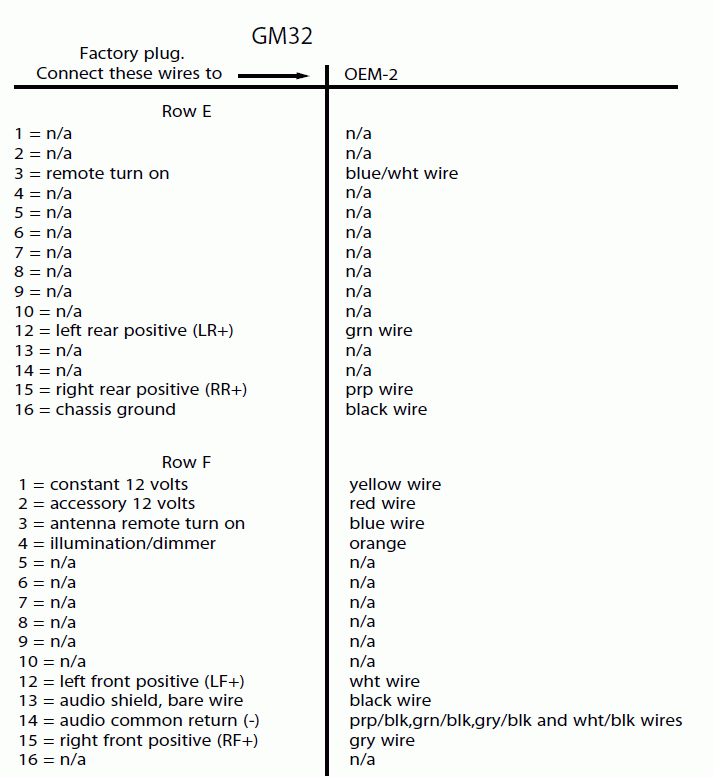

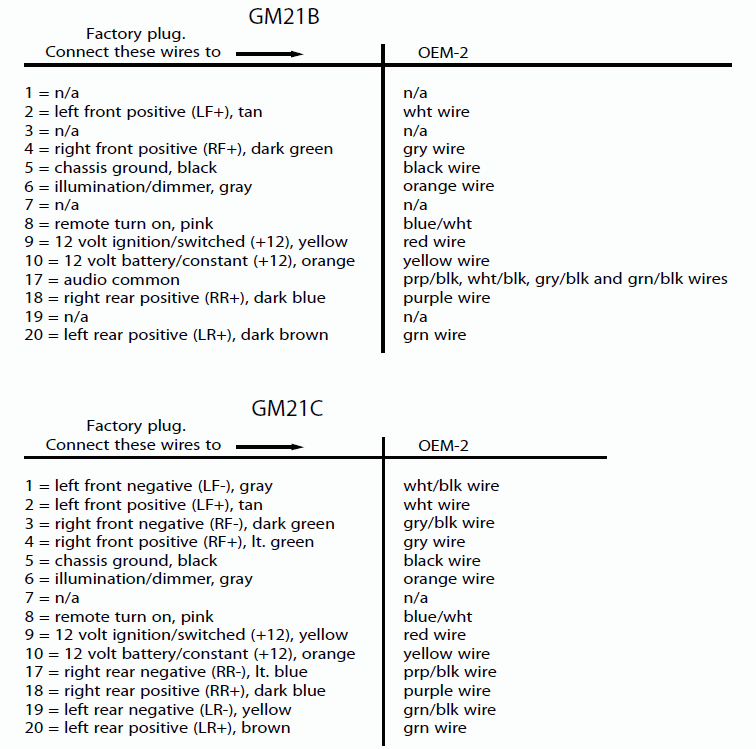

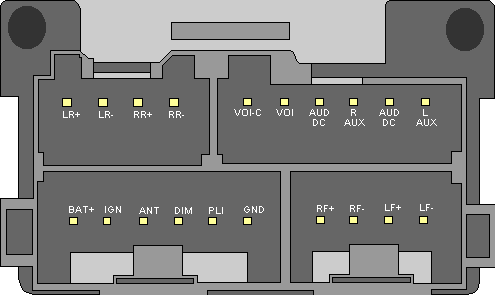

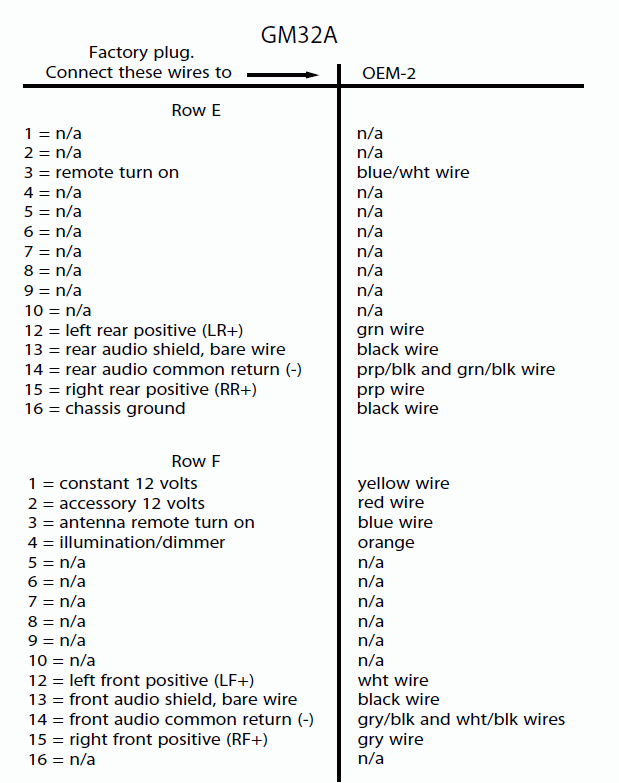

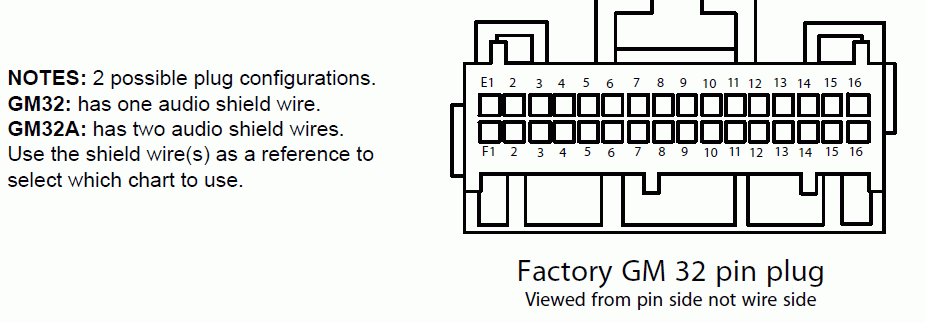

GM car radio wiring connector audio

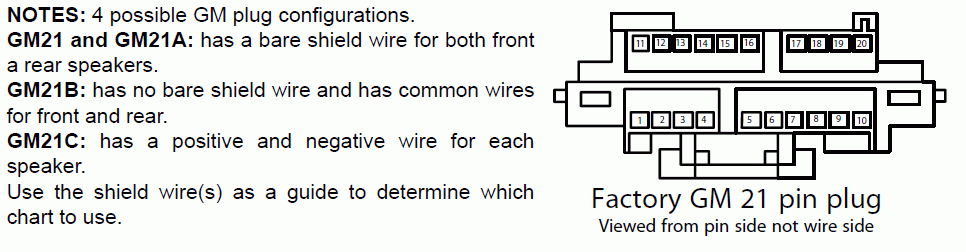

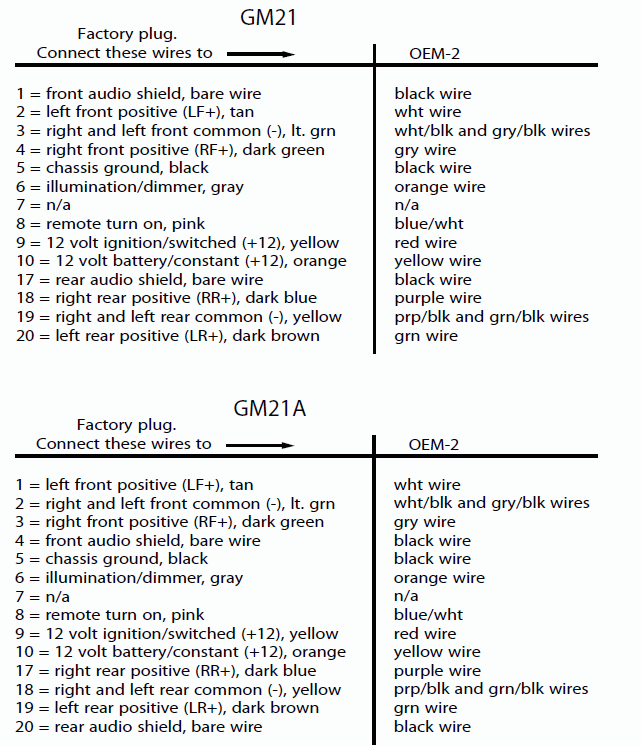

  The factory wire colors given are typical of most GM vehicles.

Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

CHEVROLET

22 DC479

PHILIPS

TMP87PP21F

24W166

CHEVROLET

AM/FM+CD

DELCO

TMS

CHEVROLET

CD  THEFTLOCK

DELCO

TMS

CHEVROLET

UL0  THEFTLOCK

DELCO

TMS370C756

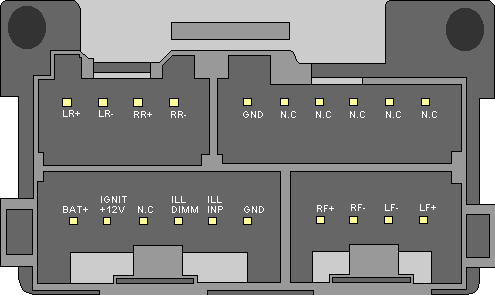

Delco CDR-500

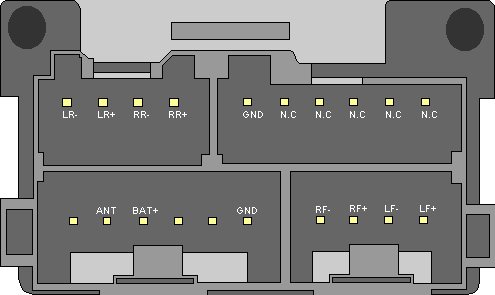

( A 4 - +12 V Direct) ( A5 Antenna Output +) ( A6 Ilum.) ( A7 +12 V Accessories) ( A8 - GND) ( B1 RR +) ( B2 RR-) ( B3 RF +) ( B4 RF-) ( B5 LF +) ( B6 LF-) ( B7 LR +) ( B8 LR-)

Delphi Famar  CDR-2005

Konzern Sam - Sam 2000 ( A1 Gala) ( A2 Mute) ( A3 Diagnosis) ( A4 +12. Acc.) ( A5 + 12.Permanente) ( A6 Ilum.)A1 Gala) ( A2 Mute) ( A3 Diagnosis) ( A4 +12. Acc.) ( A5 +12. Standing) ( A6 Ilum.) ( A7 v.Permanente +12) ( A8 GND) ( C1 LR + Line Out) ( C2 RR + Line Out) ( C3 Audio GND) ( C4 LF + Line Out.) ( C5 RF + Line Out.) ( C6 Amp.Control.) ( C7 Telephone input.) ( C8 Display remote clock.) C9 Remote Data Display) ( C10 Remote Display enable) ( C11 remote SWC) ( C12 Tel.In) ( C13 to C20 dating CDX)

DELCO MODEL: 14179985

DELCO MODEL: 16149451

DELCO MODEL: 16194975

DELCO-LOC II
MODEL: 16220765 Made in USA

CHEVROLET BLAUPUNKT ASM-3 BAND  CDP1(A)  BP3092 BLAUPUNKT ST7285CQ6/MFHTR (8925905639) 24C16 smd + 35T02 smd TDA7375A x 2
CHEVROLET 92075549 EUROVOX
CHEVROLET 92075550 EUROVOX D17012GF586
CHEVROLET DELPHI DELCO D70F3049YGC (09390756 0347KEA0R 23194R) 9355093 smd
CHEVROLET DELCO D70F3049YGC 24C08 smd
CHEVROLET DELPHI DELCO D70F3049YGC (09390756 0318KEA07 23194R) 9355093 smd
CHEVROLET DELPHI DELCO D70F3268YGC 09400464 16219796
CHEVROLET DELPHI DELCO D70F3044YGC (09375543) 24C08 smd
CHEVROLET BH FUJITSU TEN D70F3283YGC 24C32 smd TDA8589AJ
CHEVROLET UL0 DELCO TMS370C756
CHEVROLET DC479 PHILIPS TMP87PP21F 24W166
CHEVROLET ACK-1636H DAEWOO LC723748-9B98 TDA8567Q ???
CHEVROLET ACK-1636VS DAEWOO
CHEVROLET AGC-3106VA  MP3 DAEWOO D703033-040 AGC-3106 TDA7386

CHEVROLET Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install.

CHEVROLET Car radio wiring diagrams. car radio wire diagram stereo wiring diagram gm radio wiring diagram. Car stereo wiring diagrams car radio wiring car radio wiring colors car radio wire car radio connections wiring diagram car radio wire colours.

CHEVROLET auto radio wiring diagrams install car radio. How to install car radio autoradio wiring harness stereo installation.  How to install car radio wires. Car radio install car wiring diagrams wiring harness pinout connector diagram. Car stereo radio wiring diagram. How to wire a car radio wiring diagram for car stereo. Car stereo wiring diagram radio installation head unit. Car radio wire colors car audio wiring free radio wiring diagrams. Radio diagram wiring car radio car radio wiring diagrams. Free car radio wires stock diagram. Car radio wiring colour codes car radio speakers.
